Repair MSI CR620

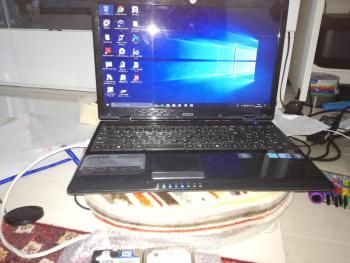

IMG_20180110_103312


もともとWin7が入っていたらしいが、案の定、Win10に乗っ取られている。
It seems that Win7 was originally included, but as expected, Win 10 is being hijacked.

CONFIGRATIONS

CPUIntel® Core™ i5 Processor
OSGenuine Windows® 7 Home Premium
ChipsetIntel® HM55
MemoryDDR3 1066, Max: 8GB
Display15.6" 1366x768 HD
GraphicsIntel® HD Graphic
Graphics VRAMshare with system memory
Storage2.5" 320GB SATA
Optical DriveSuper-Multi
Audio2 High Quality Stereo Speakers
Webcam1.3M
Card ReaderSD/MMC/MS/XD
LAN10/100
Wireless LAN802.11b/g/n
Bluetooth1
D-Sub (VGA)1
HDMI1
USB 2.0 port3
Mic-in/Headphone-out1/1
Express Card1
Keyboard103 keys
AC Adapter65W
Battery6 cells
Dimension374(L) X 247.5(D) X 35(H)mm
Weight (KG)2.48
起動しない。HDDの故障の様だ。yahooオークションにて同型の2.5" 320GB SATAを落札。交換。不調のHDDは外付けとする。
It does not start. It seems that the HDD is faulty. I bid for the same type of 2.5 "320GB SATA at yahoo auction. Exchange, HDD with bad condition is externally attached.

Make debian 9.3 LIVE DVD

debian9.3のLIVE DVD を作って、DVDから起動する。コンソールを立ち上げて・・・。
Make debian 9.3 LIVE DVD and boot from DVD. Start up the console ....
エラー無視、ゼロパッド、バイトサイズ512.小さめ。ゼロパッドをできうる限り小さくしたい。だけど余計な時間がかかる。
Error ignoring, zero pad, byte size 512. Small. I would like to make the zero pad as small as possible. But it takes extra time.
dd if=/dev/sdb of=/dev/sda conv=sync,noerror bs=512
そんなこんなで、6時間。
With such a reason, six hours.

Start-up

外付けHDDを除去して起動。修復を実行して、何事もなく起動した。巷の噂で、Win10はHDDコピーしても起動できないと聞いたことがあるのだが・・・。
Remove the external HDD and start up. It executed restoration and started without any problems. It is rumored that I heard that Win 10 can not be started even after copying the HDD.

約一年分のプログラム更新が未実施だ。この秋には大々的なアップグレードもあったはずだ。いつ終わることやらorz
About one year's program update has not been implemented yet. There should have been a big upgrade in the autumn. When will it be finished orz
